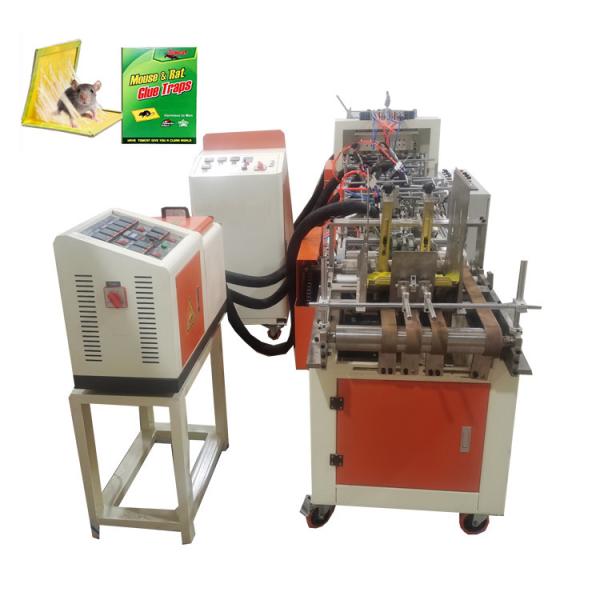

80kg Hot Melt Rat Glue Trap Making Machine Automatic Control

Name: 80kg Hot Melt Rat Glue Trap Making Machine Automatic Control
Brand: KSPACK
Price: 1 USD

Buy cheap 80kg Hot Melt Rat Glue Trap Making Machine Automatic Control product

Brand Name : KSPACK

Model Number : HG898+80kg

Certification : ISO ,CE

Place of Origin : cangzhou

MOQ : 1set

Price : Negotiable

Payment Terms : Western Union, L/C, T/T

Supply Ability : 30sets per month

Delivery Time : 30-50days after getting deposit

Packaging Details : wooden case

machine function : Rodent Mouse Rat Glue Trap Board Making Machine

glue type for this machine : hot melt glue

glue tank : 80kg

Glue trap needed : 15-25 grams

control system : automatic control

machine name : Rodent Mouse Rat Glue Trap Board Making Machine

final goods : every model glue trap boards

Machine type : auto feeder auto glue auto edge fold

Machine color : Customzied

Machine speed : 70 -100 pcs er min

Contact Now

Rat Pest Control Machine To Make Sticky Glue Board Hot Sale Rodent Mouse Rat Glue Trap Board Making Machine

1)Brief introduction for Rodent Mouse Rat Glue Trap Board Making Machine


full-automatic rat glue trap making folding and gluing machine is high efficient automatic production equipment for rat board glue traps .
Rat glue trap making machine includes : automatic paper feeding part , automatic folding edge part, automatic gluing part , automatic material spraying part, automatic spacer put part , automatic fold final products part .multi function finished one time .This model Rat glue trap making machine can move the folding machine section separately and connect the automatic paper feeder with the gluing section, can produce other products such as sticky board, magic blanket, mosquito killer lamp sticky board and fly glue catcher (semi-automatic operation, according to product requirements)

2)Structure for Rodent Mouse Rat Glue Trap Board Making Machine

whole machine composed of eight parts: a, automatic paper feeding; b. Automatic edge folding (4-way edge); c. Automatic gluing+automatic spraying bait; d. Automatic put seperate button (spacer); e. Automatic folder final products belt; f. 5KG capacity hot melt machine,(this for coat glue for fold edge) four hose pipes and three sets glue coat guns; g. 40kg hot melt machine, 1 hose pipe and 1 set of glue gun,for glue glue to board h. 1set 150kg glue melting pot (for heat the glue in advance and extend continuous production time ,it can direct connect with 40kg glue tank )

3)Specific for Rodent Mouse Rat Glue Trap Board Making Machine

HG-909 fully auto mouse glue trap machine
A.Machine size and weight	Floor Space	7mx2m
A.Machine size and weight	Weight	950kg
B.Factory Facility Supply Requirements	Machine motor	30kw
	Working pressure	AC 380v ±10% 50 Hz
	pressure/pipe diameter	Min2-6Kg/㎡,pipe diameterφ8
	Environmental requirements	Clean, separate material machines, equipped with fire extinguisher facilities
C.Device control method	programmer	Plc controller and 7 inch touch screen
C.Device control method	constant temperature heating	PID control
D. mouse board size range	Width	170mm-300mm
	Glue coating size	130mm-260mm
	tolerance range	±0.5mm
E.configure	Control system	PLC:yonghong
	Control system	Touch screen: Fanyi
	Transmission ,fold	Servo control:Hui chuan
	Auto feeder	400w horizontal motor + frequency control (Yatai)
F.Other	Most machine parts use standard parts
F.Other	Need to be equipped with a air compressor more than 1.5KW

4)Specific for Rodent Mouse Rat Glue Trap Board Making Machine

80kg Hot Melt Rat Glue Trap Making Machine Automatic Control
